Stud-link chain cables

Name: Premium Stud-link Chain Cables For Marine Use | Carbon Chains | Carbon Chains
Brand: Carbon Chains

At our yard in Rotterdam, we have all sizes of stud-link chain cables available. Stud-link chains are standard cables, supplied in lengths of 27.5 metres. We can deliver them as they are, with an environmentally friendly coating, or — up to 48mm — with a hot-dip galvanized finish.

Dimensions are not binding and may vary.

12.5–162mm range

Grade 2 & 3

27.5m standard length

Request a Quote

Reading The Spec

What the numbers mean

Four figures matter when you’re specifying this chain: grade, proof load, breaking load, and mass per metre. Here’s what each one tells you.

Grade 2 vs. Grade 3

Grade 3 steel carries a higher proof load and breaking load than Grade 2 at the same diameter — it lets you specify a smaller, lighter chain for the same working load, at a higher unit cost.

Proof load

The load each length is tested to during manufacture without permanent deformation. It’s a quality check, not the load the chain is rated to carry in service.

Breaking load

The load at which the chain is expected to fail. Working loads are specified well below this figure, with a safety factor set by the classification society or application.

Mass per metre (kg/m)

Used to calculate the total weight of a length before it’s ordered — relevant for windlass capacity, deck loading, and freight costs alike.

Dimensions & Breaking Loads

Stud-link chain cables: dimensions & breaking loads

Diameter (mm)	Grade 2		Grade 3		Mass (kg/m)
Diameter (mm)	Proof Load (kN)	Breaking Load (kN)	Proof Load (kN)	Breaking Load (kN)	Mass (kg/m)
12.5	66	92	92	132	3.42
14	82	116	116	165	4.29
16	107	150	150	216	5.61
17.5	127	179	179	256	6.71
19	150	211	211	301	7.91
20.5	175	244	244	349	9.2
22	200	280	280	401	10.6
24	237	332	332	476	12.61
26	278	389	389	556	14.8
28	321	449	449	642	17.17
30	368	514	514	735	19.71
32	417	583	583	833	22.43
34	468	655	655	937	25.32
36	523	732	732	1050	28.38
38	581	812	812	1160	31.62
40	640	896	896	1280	35.04
42	703	981	981	1400	38.63
44	769	1080	1080	1540	42.4
46	837	1170	1170	1680	46.34
48	908	1270	1270	1810	50.46
50	981	1370	1370	1960	54.75
52	1060	1480	1480	2110	59.22
54	1140	1590	1590	2270	63.86
56	1220	1710	1710	2430	68.68
58	1290	1810	1810	2600	73.67
60	1380	1940	1940	2770	78.84
62	470	2060	2060	2940	84.18
64	1560	2190	2190	3130	89.7
66	1660	2310	2310	3300	95.4
68	1750	2450	2450	3500	101.3
70	1840	2580	2580	3690	107.3
73	1990	2790	2790	3990	116.71
76	2150	3010	3010	4300	126.5
78	2260	3160	3160	4500	133.2
81	2410	3380	3380	4820	143.69
84	2580	3610	3610	5160	154.53
87	2750	3850	3850	5500	165.76
90	2920	4090	4090	5840	177.39
92	3040	4260	4260	6080	185.36
95	3230	4510	4510	6440	197.56
97	3340	4680	4680	6690	206.06
100	3530	4940	4940	7060	219
102	3660	5120	5120	7320	227.85
105	3850	5390	5390	7700	241.45
107	3980	5570	5570	7960	250.73
111	4250	5940	5940	8480	269.83
114	4440	6230	6230	8890	284.61
117	4650	6510	6510	9300	299.79
120	4850	6810	6810	9720	315.86
122	5000	7000	7000	9990	325.96
124	5140	7200	7200	0280	336.73
127	5350	7490	7490	10710	353.23
130	5570	7800	7800	11140	370.11
132	5720	8000	8000	11420	381.59
137	6080	8510	8510	12160	411.04
142	6450	9030	9030	12190	441.59
147	6840	9560	9560	13660	473.59
152	7220	10100	10100	14430	505.98
157	7600	10640	10640	15200	539.81
162	7990	11180	11180	15980	574.74

Grading is traced to the IACS unified requirements that classification societies apply to stud-link chain cable.

Size D	Anchor Chain
	Grade2		Grade 3		Chain Density
	Proof Load	Breaking Load	Proof Load	Breaking Load	Chain Density
	KN	KN	KN	KN	（kg/m)
12.5	66	92	92	132	3.42
14	82	116	116	165	4.29
16	107	150	150	216	5.61
17.5	127	179	179	256	6.71
19	150	211	211	301	7.91
20.5	175	244	244	349	9.2
22	200	280	280	401	10.6
24	237	332	332	476	12.61
26	278	389	389	556	14.8
28	321	449	449	642	17.17
30	368	514	514	735	19.71
32	417	583	583	833	22.43
34	468	655	655	937	25.32
36	523	732	732	1050	28.38
38	581	812	812	1160	31.62
40	640	896	896	1280	35.04
42	703	981	981	1400	38.63
44	769	1080	1080	1540	42.4
46	837	1170	1170	1680	46.34
48	908	1270	1270	1810	50.46
50	981	1370	1370	1960	54.75
52	1060	1480	1480	2110	59.22
54	1140	1590	1590	2270	63.86
56	1220	1710	1710	2430	68.68
58	1290	1810	1810	2600	73.67
60	1380	1940	1940	2770	78.84
62	470	2060	2060	2940	84.18
64	1560	2190	2190	3130	89.7
66	1660	2310	2310	3300	95.4
68	1750	2450	2450	3500	101.3
70	1840	2580	2580	3690	107.3
73	1990	2790	2790	3990	116.71
76	2150	3010	3010	4300	126.5
78	2260	3160	3160	4500	133.2
81	2410	3380	3380	4820	143.69
84	2580	3610	3610	5160	154.53
87	2750	3850	3850	5500	165.76
90	2920	4090	4090	5840	177.39
92	3040	4260	4260	6080	185.36
95	3230	4510	4510	6440	197.56
97	3340	4680	4680	6690	206.06
100	3530	4940	4940	7060	219
102	3660	5120	5120	7320	227.85
105	3850	5390	5390	7700	241.45
107	3980	5570	5570	7960	250.73
111	4250	5940	5940	8480	269.83
114	4440	6230	6230	8890	284.61
117	4650	6510	6510	9300	299.79
120	4850	6810	6810	9720	315.86
122	5000	7000	7000	9990	325.96
124	5140	7200	7200	0280	336.73
127	5350	7490	7490	0710	353.23
130	5570	7800	7800	11140	370.11
132	5720	8000	8000	11420	381.59
137	6080	8510	8510	12160	411.04
142	6450	9030	9030	12190	441.59
147	6840	9560	9560	13660	473.59
152	7220	10100	10100	14430	505.98
157	7600	10640	10640	15200	539.81
162	7990	11180	11180	15980	574.74

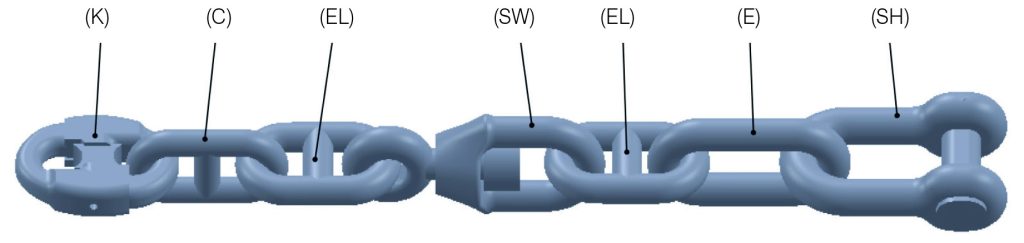

nominal diameter in mm	length (each 27,5 mtr) kg	kenter joining shackle (kg)	d' type anchor shackle (kg)	swivelforerunner (kg)	gjw super swivel (kg)	threelink adopter (kg)
14	140	0.5	1.7	2.8	7	1.3
14	140	0.5	1.7	2.8	7	1.3
14	140	0.5	1.7	2.8	7	1.3
14	140	0.5	1.7	2.8	7	1.3
14	140	0.5	1.7	2.8	7	1.3
14	140	0.5	1.7	2.8	7	1.3
14	140	0.5	1.7	2.8	7	1.3
14	140	0.5	1.7	2.8	7	1.3
14	140	0.5	1.7	2.8	7	1.3
14	140	0.5	1.7	2.8	7	1.3

Request for quotation

Please fill out below form, so we can send you our best quote right away!

Check out our latest news

NEWS

May 17, 2021

Approved testing house

So proud!

Questions

Answered straight, no sales pitch.

What sizes do stud-link chain cables come in?

12.5mm to 162mm nominal diameter, all held in stock at our Rotterdam yard, supplied in standard 27.5m lengths.

What's the difference between Grade 2 and Grade 3?

Grade 3 carries a higher proof load and breaking load than Grade 2 at the same diameter, letting you use a smaller, lighter chain for the same working load.

Can stud-link chain cables be hot-dip galvanized?

Yes, up to 48mm. Above that diameter, or as an alternative, we supply an environmentally friendly coating instead.

What length do stud-link chain cables come in?

A standard length of 27.5 metres per shot. Dimensions are not binding and may vary — confirm the exact length against your order.

Know Your Diameter And Grade?

Send us the spec.

Carbon Chains stocks this chain in every diameter from 12.5mm to 162mm, Grade 2 or 3, ready to ship from Rotterdam.
